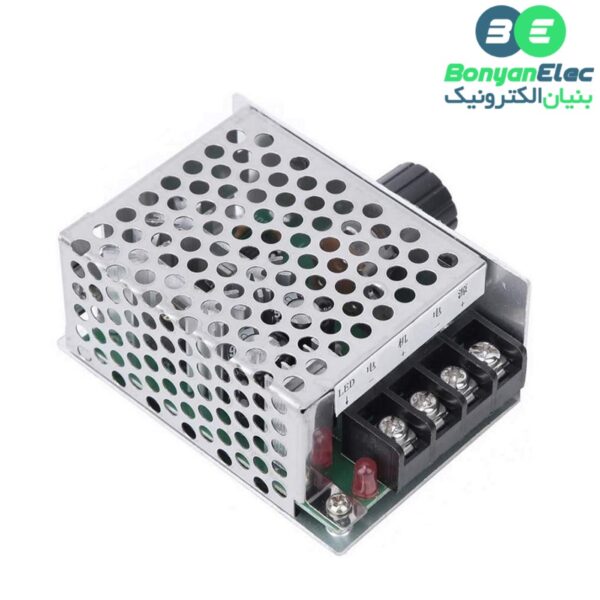

کنترلر دور موتور DC خروجی PWM متغیر 60v-9v -جریان 20A

مشخصات :

• ولتاژ کار: 9V-60V
• حداکثر جریان: 20A
• جریان مداوم: 18A
• محافظت از اضافه بار: (فیوز)
• فرکانس PWM: 15KHZ
• جریان استاتیک: 0.01A (حالت آماده به کار)

Specifications :

• • • Working voltage: 9V-60V
    • Output voltage: load linear
    • Maximum current: 20A
    • Continuous current: 18A
    • Overload protection: (fuse)
    • PWM frequency: 15KHZ
    • Static current: 0.01A (standby state)
    • Mode of speed regulation: potentiometer (with switch)
    • Speed regulation type: adjustment
    • Shell size: long 85MM*58MM*38MM
    • Net product weight: 120 g

Please note:

1. This governor is used for DC brushed motors.

2, not suitable for DC brushless motor speed; can not be used as a regulator or regulator!

3. The motor can be divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.

Special reminder:

The DC motor governor is connected to the DC power supply.

Never connect directly to home 110V AC.

Otherwise the damage will be at your own risk!
