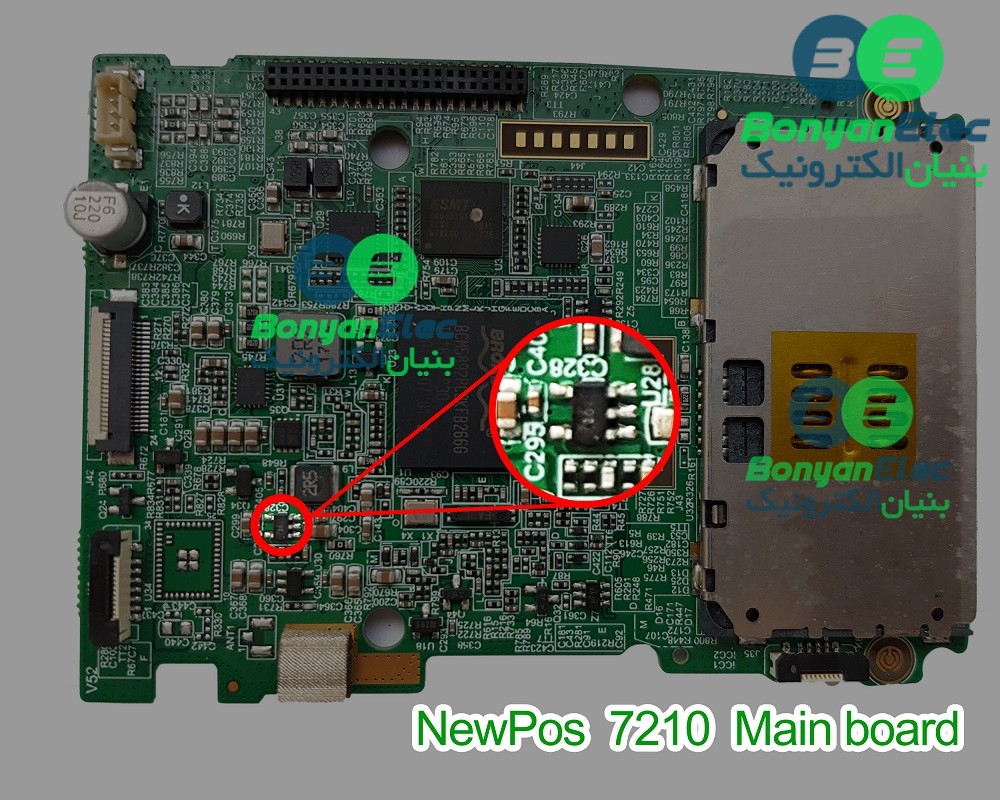

آی سی پاور(آی سی Z) دستگاه کارتخوان NewPos مدل 7210 (اورجینال)

*این محصول دارای کیفیت بالاتری نسبت به ای سی تغذیه خود دستگاه میباشد.

مشخصات :

• رگلاتور کاهنده ولتاژ سوئیچینگ قابل تنظیم (آی سی مدل Z)
• ولتاژ ورودی : 2.7 – 6 ولت
• ولتاژ خروجی : 0.6 – 3.4 ولت
• اورجینال

:Specifications

The RT8097C is a high efficiency synchronous stepdown DC/DC converter. Its input voltage range is from 2.7V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 2A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The Current Mode Constant-On-time (CMCOT) operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The RT8097C is available in the SOT-23- 5/6 package. -Features: – Efficiency Up to 95% -RDS(ON) 100mOhm – VIN Range 2.7V to 6V -VREF 0.6V with +-2% Accuracy at 25C -CMCOT™ Control Loop Design for Best Transient Response, Robust Loop Stability with Low-ESR (MLCC) COUT -Soft-Start 1.2ms; PGOOD Function in SOT-23-6 -Power Saving at Light Load –Applications – STB, Cable Modem, & xDSL Platforms -LCD TV Power Supply & Metering Platforms -General Purpose Point of Load (POL)
