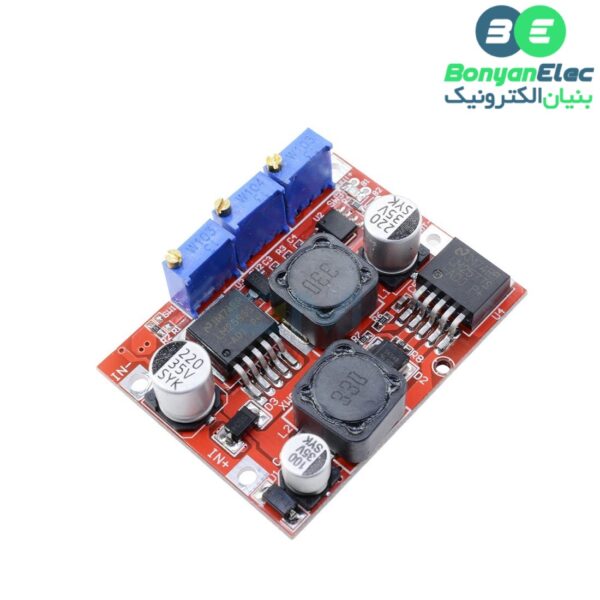

ماژول مبدل DC-DC کاهنده و افزاینده

مشخصات :

• ولتاژ ورودی : 4 الی 35 ولت DC
• ولتاژ خروجی : 1.5 الی 25 ولت DC
• جریان خروجی : 3 آمپر با قابلیت تنظیم
• اندازه : 50x37x13mm

Specification:

• Input Voltage : 4-35V
• Output Voltage: Continuously adjustable(1.25-25V unload adjust)
• Output Current: 3A Max(If more than 15W, please install the heat sink)
• CC Range:0-2A (adjustable)
• Revolving Light Current: CC value * (1%-100%), default is 0.1 times
• Minimum Voltage Difference: 2V
• Output Power: Natural cooling 15W
• Conversion Efficiency: 80% (the higher the output voltage, the higher the efficiency)
• Operating Temperature: Industrial (-40 ° to +85 °) (ambient temperature more than 40°, lower power use, or add heat sink)
• Full load temperature rise: 45 °
• Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
• Output short circuit protection: Yes, constant current.
• Connect method: Can solder on the PCB with wire directly
• Input: IN+ input Positive is, IN- input negative
• Output: OUT+ output is positive, OUT- output negative
• Module Size: Approx. 50 x 37 x 13mm
