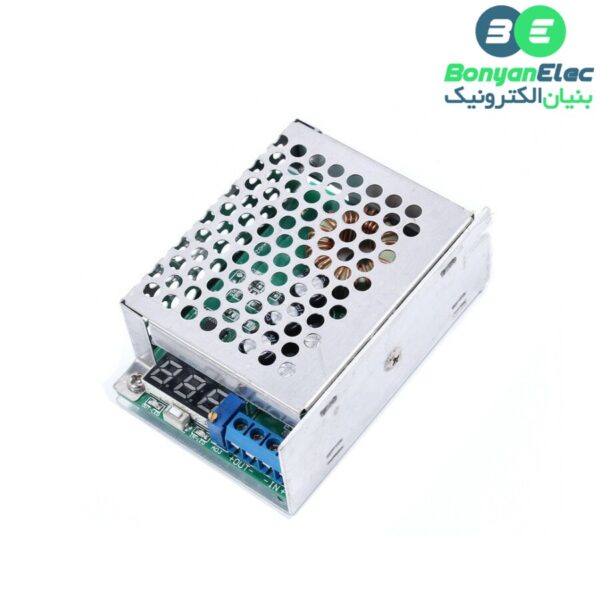

ماژول DC-DC کاهنده 10 آمپر 300W با نمایشگر ولتاژ

مشخصات :

•  ولتاژ ورودی: 3.5 تا 30 ولت
• ولتاژ خروجی:0.8 تا 29 ولت
• حداکثر توان خروجی:300W
• ابعاد: 8.5×5.8×3.3 سانتی متر
• محدوده دمای کاری:۸۵+ ~ ۴۰-

Specification:

1, the input voltage: DC3.5 ~ 30V (do not put too much pressure)
2, the output voltage: DC0.8 ~ 29V (Note: This board is a step-down board, requires higher input voltage than the output voltage of 1 V or more)
3, the output current: 10A (MAX)
4, conversion efficiency: 92% (24V switch 12V / 2A when measured)
5, on board meter voltage: shows the input voltage or the output voltage, briefly press the button below the digital conversion, the LED lights marked EN is the input voltage measurement, LED light beacon measured OUT is the output voltage.
6, Factory calibration voltage display without calibration.
Red LED display, the resting current 2-8mA (either digital tube open about)
Weight: 105G (NW)
