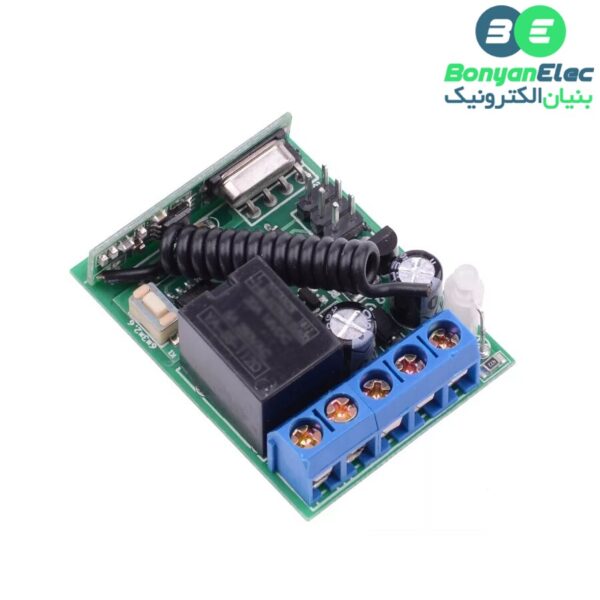

ماژول گیرنده 1 کاناله 315MHz کدلرن قابدار مدل ZK1PA

169,000 تومان

موجود در انبار

نقد و بررسی اجمالی

مشخصات :

  • ولتاژ کاری : 12 ولت DC
  • تعداد کانال : 1
  • فرکانس کاری : 315MHz
  • دارای 3 حالت کاری
  • ابعاد : 53.5x38x22mm

About Working way:

Working model adjusted by Learning button

Momentary: Relay: Press and hold -> On; Release -> Off.

Toggle: Relay: Press -> On; Press same button again -> Off·

Latched: Relay: Press -> On; Press other button -> Off.

Delay time: Relay : Press -> On; Off according to delay pin selection

The delay pin selection:

1. Pin position is not connected, delay 3 seconds

2. Pin position AB connection – delay 5 seconds

3. Pin position CD connection – delay 10 seconds

4. Pin position AB and CD connection – delay 20 seconds

5. Pin position EF connection – delay 60 seconds

6. Pin position AB and EF connection – delay 2 minutes

7. Pin position CD and EF connection – delay 5 minutes

8. Pin position AB, CD and EF connection – delay 10 minutes

About Learning and clearing Method:

Input 12V for the Receiver ,

Momentary: Press the Learning Button 1 times. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.

Latched: Press the Learning Button 2 times. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.

Toggle: Press the Learning Button 3 times. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.

Delay time : Press the Learning Button 4 times. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully. change jumper for adjust delay time

Clearing Code:

press the Learning Button and hold 6 seconds, the LED indicator from ON to OFF, it means clearing is successfully.
